S-5-MIDGRAB

S-5-MIDGRAB

S-5!
(Code: S5-PVKIT-MID)
Rail-less solar panel system (excludes clamp).
£ 8.01
80
Add to cart

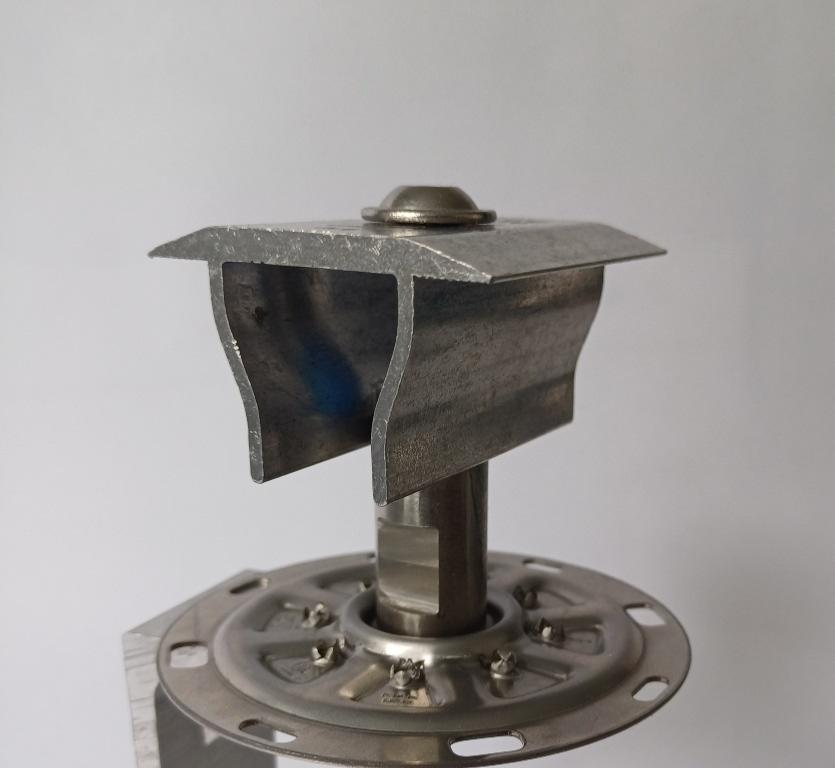

  1. The S-5-PV Kit (excludes clamp) is designed specifically to secure framed photovoltaic modules to standing seam metal roof systems without penetrating the roof's surface, without the use of a rail or violating the roof's warranty. The kit fits the majority of solar panels and metal roofs on the market - including exposed-fastened and corrugated profiles using the S-5! Versabracket..

    S-5! has created a solution for the PV industry that:

    • Fits the majority of solar panels on the market.
    • Fits the majority of metal roofs on the market - including exposed fastened and corrugated.
    • Installs quickly and easily.
    • Is very cost-effective.
    • Universally fits both field (2 panels) and end conditions!

    The concept of combining photovoltaic arrays with standing seam metal roofing is growing and for good reasons. A standing seam metal roof has a life expectancy consistent with that of framed PV modules. A 30-year power source on a 30-year roof, along with zero penetration technology creates the most sustainable roof system available with alternative power generation, all without compromising the roof's warranty!

    PV Kit Features
    • Aluminium body and disc for aluminium clamps. Stainless steel body also available for brass clamps on copper roofing (please contact us).
    • Stainless steel hardware.
    • M8 thread.
    • Longer PV stud accommodates PV frame thicknesses from 33mm to 64mm.
    • Bevelled mounting disk provides an easy to use module placement guide.
    • Four strategically placed mounting disk hooks to assist in wire management.
    • New broader ears on the PV grab allow for even easier installation and precise module engagement.
    • Mounting disk is universally directional for simplicity of installation,
    • Absolutely NO rails required!
    • Incredible holding strength that only S-5! can offer.

    With a service life compatible with the expectancy of metal roofs and attached accessories, the S-5-PV Kit offers unmatched sustainability. The patented design of the attachment clamp and attendant round-point setscrews enables an entire installation without a single penetration through the roof’s surface. Lower installation costs and cooler roofs, combined with rising energy costs and increased environmental concerns all spell a bright, sunny future for PV and standing seam metal roofs. S-5! makes it easy.

    The S-5-PV Kit fits only S-5! Mini Clamps. A flat mounting disk is available for using the S-5-PV Kit with our Versa Bracket, allowing solar panel attachment to exposed fastened and corrugated metal roofing.
