S-5 Versabracket 47
S-5 Versabracket 47S-5 Versabracket 47

S-5 Versabracket 47

S-5!
(Code: S5-VERSA)

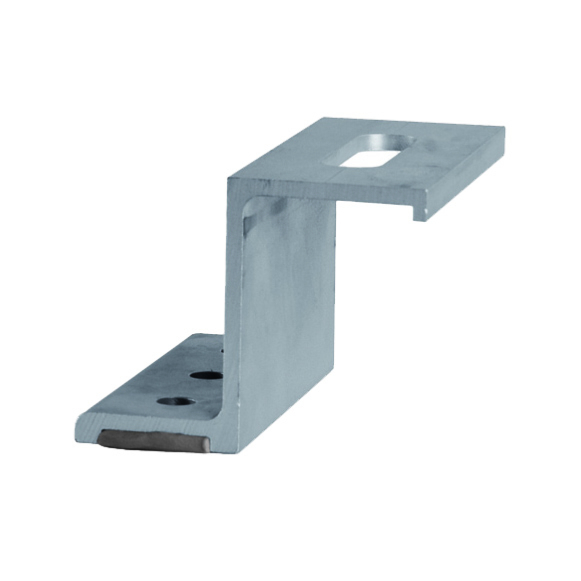

Aluminium pre-punched bracket.
£ 3.57
67
Add to cart
  1. The punched Versabracket 47 offers various mounting face configurations. The Versabracket can be used to mount almost anything to an exposed-fastened roof system and is compatile with almost any trapezoidal exposed-fastened profile.

    No messy sealants to apply! No chance for leaks!

    The Versabacket comes with factory-applied butyl sealant already in the base, and the S5! patented reservoir conceals the sealant from UV exposure, preventing drying and cracks.

    VersaBracket is compatible with the PVKIT® for rail-less (direct-attach™) or bottom-bolted rail for solar mounting. It can be used for other utility mounting as well. We do NOT recommend the use of VersaBracket for side-bolted rail with L-Foot. For these applications, please contact us.

    Product Specifications
    • VersaBracket 47: 47mm
    • Horizontal mounting face comes with 25mm slot on top for 8mm bolted attachments.
    • Factory-applied, non-curing, 60-yr butyl sealant – just peel release paper and fasten.
    • Reservoir conceals sealant from UV exposure, preventing UV degradation and over-compression.
    • Design uses a "triple-seal” for watertight assurance.

    Is the VersaBracket the Best Choice for Your Roof Profile?

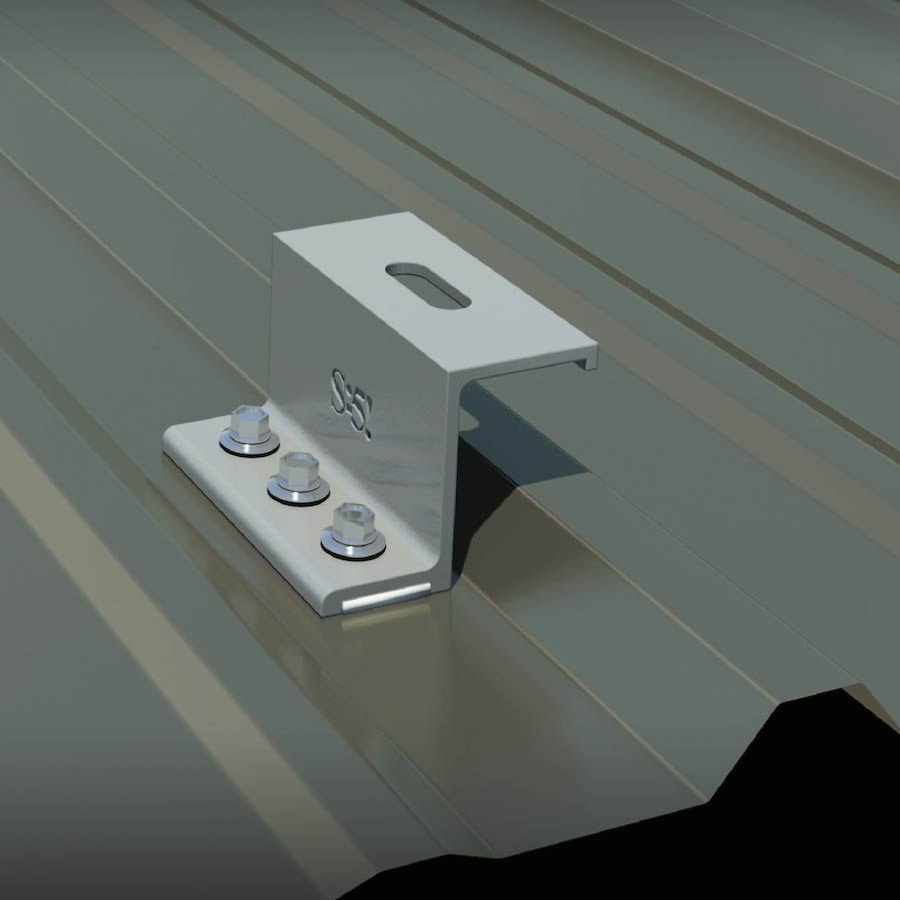

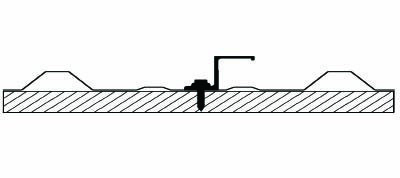

    VersaBracket 47 is mounted in the flat of the panel, directly into the supporting structure of the roof, (i.e. wood decking, wood or steel purlins or trusses). Three fastening holes are provided for added attachment strength as needed.


    How to Install VersaBracket 47 on Your Roof Profile    *
    No surface preparation is necessary. Simply wipe away excess oil and debris, peel the release paper from the base, align and apply.VersaBracket is mounted in the flat of the panel, directly into the supporting structure of the roof.Secure through the pre-punched holes using the appropriate screws (not included) for the supporting structure (wood deck, wood purlin or steel purlin)– 8mm nut/bolt purchased separately.

    *See more detailed installation instructions in the downloads tab.
    • Vertical height: 47mm
    • Weight: 0.07kg

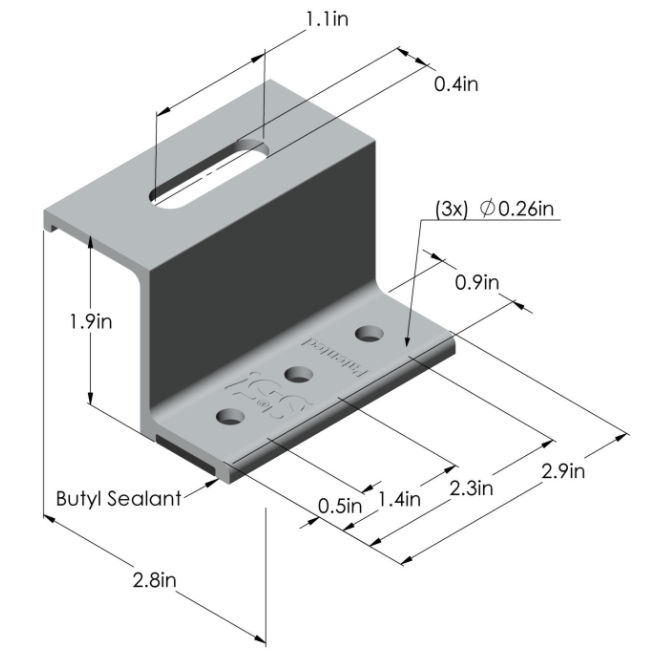

    • Dimensions:
  3.
  4.
