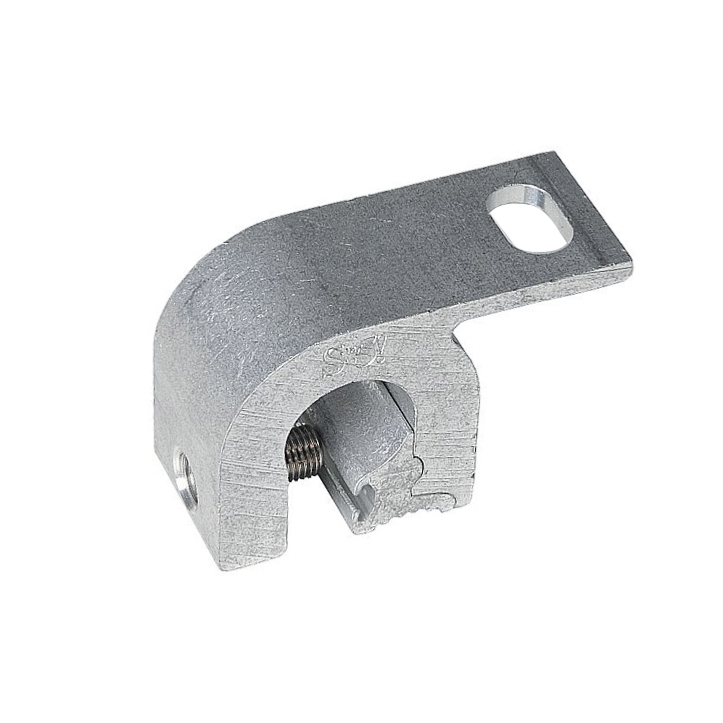

S-5-Z FL Mini Clamp
S-5-Z FL Mini ClampS-5-Z FL Mini Clamp

S-5-Z FL Mini Clamp

S-5!
(Code: S5-ZMINIFL)
Designed for round seam systems.
£ 6.64
129
Add to cart
  1. Make nut-and-bolt connections easier for bottom-bolted solar rail on bulb-shaped metal roof profiles.

    The S-5-Z clamp is specially designed to fit "Kalzip" and similar profiles that have a round "bulb" seam configuration. It's two-piece clamp design allows it to be easily installed anywhere along the length of the rib. A nut and bolt are often the required connection for certain utilities or bottom-bolted PV rails to a standing seam clamp. Choose the S-5-ZF Mini ("F” for "Flange”) for an economical, non-penetrating standing seam metal roof (SSMR) clamp for most "bulb” seam configurations.

    The slotted hole in the flange allows minor adjustment, making the ZF Mini ideal for walkways, module-level power electronics and a myriad of other utility mountings. Stainless steel lock-nuts and several bolt sizes are sold separately.

    The ZF Mini has a single setscrew for medium or light-duty applications, such as solar or satellite dish mounting.

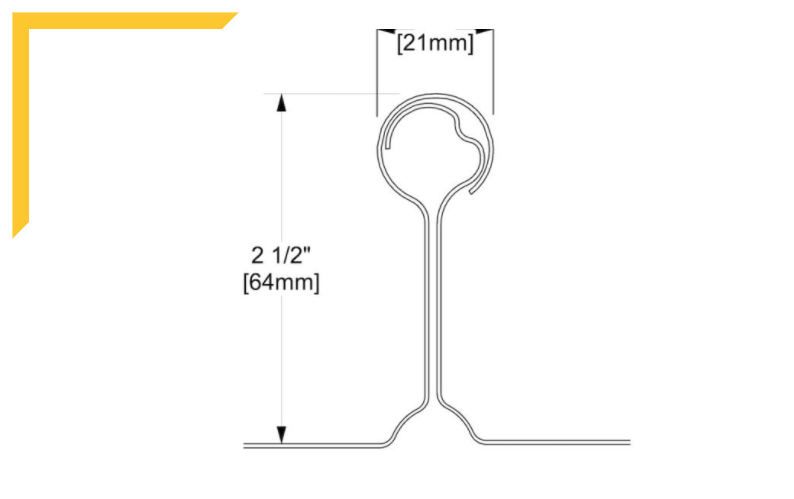

    Choose the ZF Mini to mount a variety of utilities with a round "bulb” seam configuration and seam diameters ≤ 22mm.

    Product Specifications

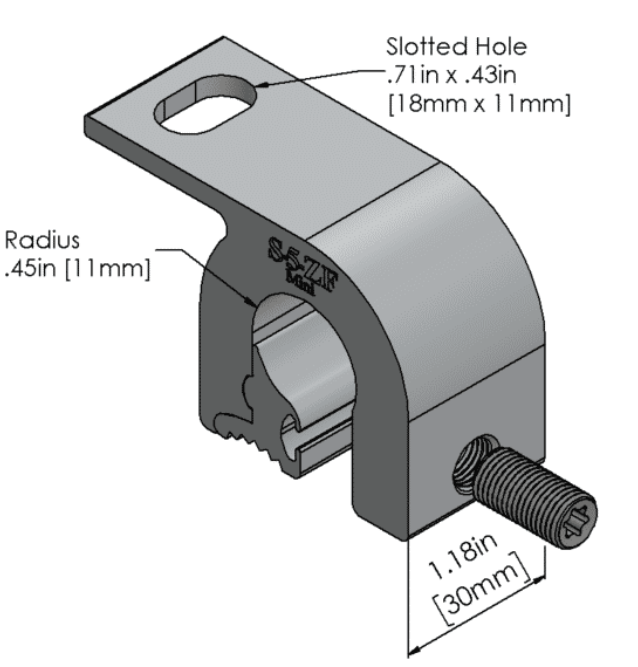

    • Slotted hole in flange provides adjustment for versatile utility mounting (bolt diameter up to 10mm).
    • Specifically designed to fit "bulb-shaped” seam profiles.
    • Unique flange design increases ease and versatility of attachment to bottom-mount rails and other nut-and-bolt connections.
    • Light and medium-duty applications, such as utility mounting and bottom-mount PV rails.
    • One T-30 Torx round-point setscrew.
    • Ideal for bottom-mounted solar PV rails.

    Is the S-5-ZF Mini the Best Choice for Your Application?


    How to Install the S-5-EF Mini Clamp on Your Roof Profile*

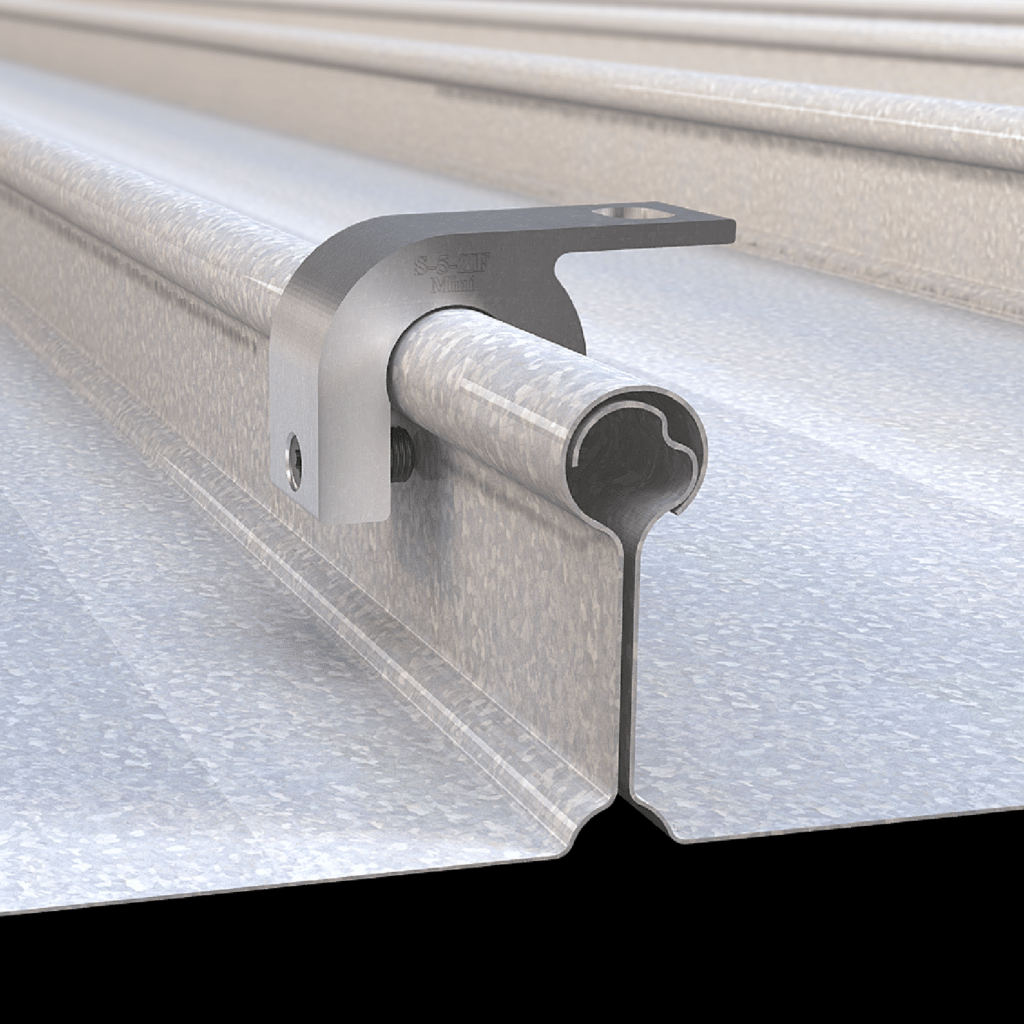

    Using the ergonomic finger grip "tail” of the insert, position the insert at the desired location against the base of the seam and just below the bulbous portion (either side of the seam). Rotate the clamp into place over both the seam and insert. Hold this assembly in place with one finger, while tightening the roundpoint Torx Drive (T30) setscrew to the specified tension. The slotted thru-hole in the flange accommodates bolt diameters of up to 10mm.

    *See more detailed installation instructions in the Downloads tab.
    • Weight: 0.13kg
    • Dimensions:
