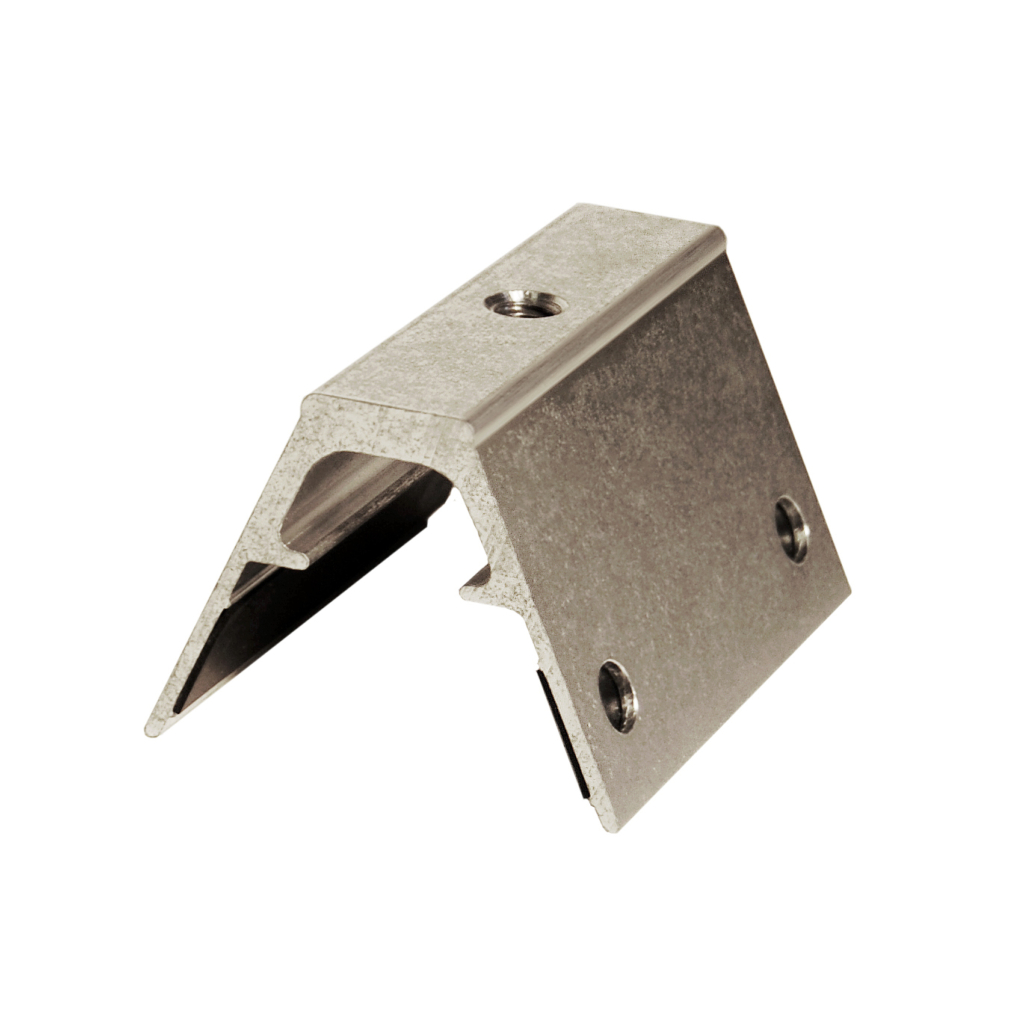

S-5 Trap Bracket

S-5 Trap Bracket

S-5!
(Code: S5-TRAP)
Attachment solution for specific trapezoidal exposed-fastened metal roofs.
£ 8.27
75
Add to cart
  1. TrapBracket™ can be used to mount virtually anything to an exposed-fastened trapezoidal composite panel roof system without having to fix into the supporting steel structure or penetrating the internal liner sheet. No messy sealants to apply, no chance for leaks and no cold bridging! The TrapBracket™ comes with a factory-applied seal already on the base for a water-tight attachment.

    TrapBracket™ is so strong it will even support heavy-duty applications like snow retention. For exposed-fastened, trapezoidal profiles, the TrapBracket™ is the perfect match for our ColorGard® snow retention system. TrapBracket™ is extremely economical and facilitates quick and easy installation. Some of the other applications include:

    • Solar PV Module – Rail or Direct attach when used in conjunction with our PV Kit.
    • HVAC and Rooftop Equipment.
    • Walkways.
    • Pipes and Conducts.
    • Signs and Banners.
    • Satellite Dishes and Antennas.
    • fixings sold seperately

    The TrapBracket™ offers various mounting face configurations with minimum purchase requirements. Each TrapBracket™ comes with factory-applied EPDM sealant in the base. A structural aluminium attachment bracket, TrapBracket™ is compatible with most common metal roofing materials.

    How to Install the TrapBracket on Your Roof Profile*
    Installation is simple. The TrapBracket is mounted directly onto the crown of the panel, straddling the profile. Nosurface preparation is necessary; simplywipe away excess oil and debris, align and apply. Secure through the pre-punched holes using the appropriateS-5! fasteners or Bulb-tite rivets for the supporting roof material.

    *See more detailed installation instructions in the downloads tab.
    • Weight: 0.075kg

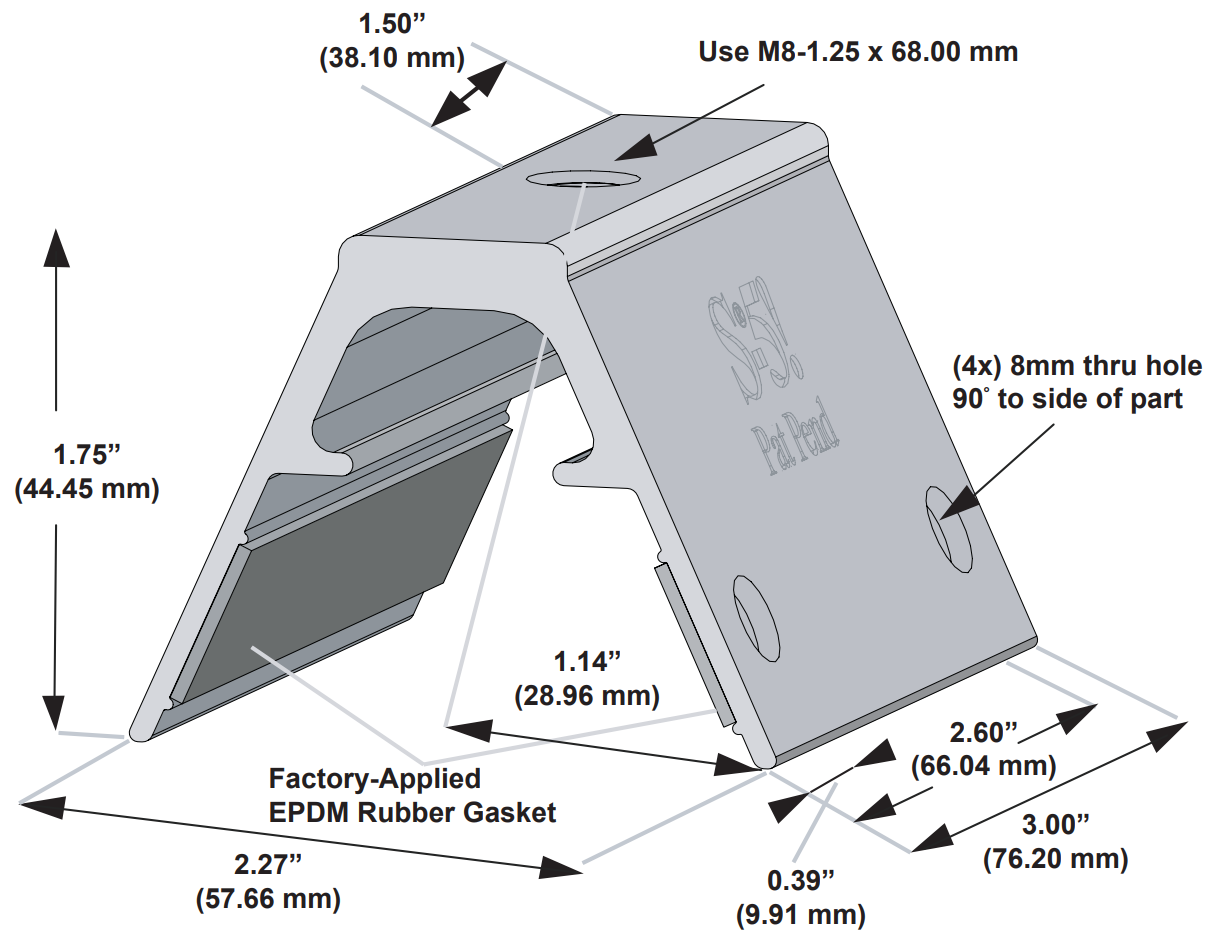

    • Dimensions:
  3. #Downloads#
