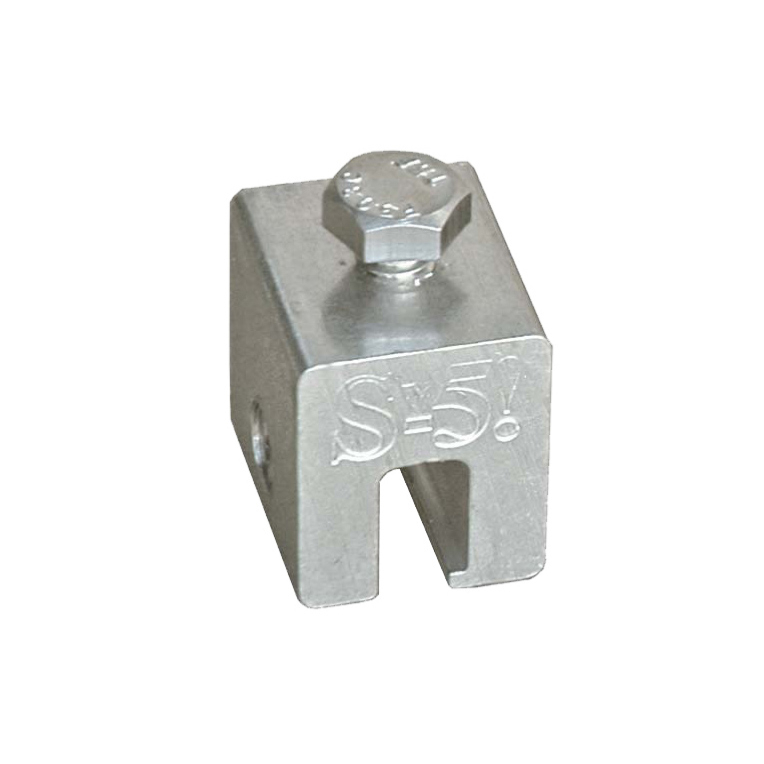

S-5-E Mini Clamp ( NO BOLT )

S-5-E Mini Clamp ( NO BOLT )

S-5!
(Code: S5-EMINI-NB)
Smaller than standard S-5-E. For lighter duty attachments.
£ 4.13
67
Add to cart
  1. Designed for traditional 25mm and most 38mm tall, European-style, double-folded standing seam profiles in zinc, stainless, aluminium and coated steel. The S-5-E ("E” is for European) is an economical, non-penetrating, standing seam metal roof (SSMR) clamp. Designed for double-folded SSMR popular in Europe and the world over, the E also fits Butler’s MR-24®.

    The S-5-E Mini clamp is a more economical solution for lighter duty attachments where Herculean holding strength is not required. It is a bit shorter than the standard S-5-E clamp with one setscrew rather than two.

    Rigorous load testing is performed on both standard and Mini clamps. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.

    S-5-E Mini Specifications
    • The S-5-E Mini is comparable strength to S-5-U Minis but at a lower cost.
    • Compatible with Butler’s MR-24® and other double-folded, standing seam metal roof.
    • Light and medium-duty applications, such as utility mounting.
    • Ideal for solar mounting applications.
    • Smaller than the standard S-5-E.
    • One T-30 Torx round-point setscrew.
    • M8 bolt sold separately.

    Is the S-5-E the Right Choice for Your Roof Profile?


    Choose the E to mount a variety of utilities with traditional seam dimensioning (13mm seam fold) to your double-folded SSMR.

    How to Install the S-5-E Mini Clamp on Your Roof Profile
    Installation is as simple as placing the clamp on the seam and tightening the round point Torx Drive (T30) setscrew to the specified tension. Then, affix ancillary items using the M8 bolt (sold separately).

    *See more detailed installation instructions in the downloads tab.

    • Weight: 0.067kg

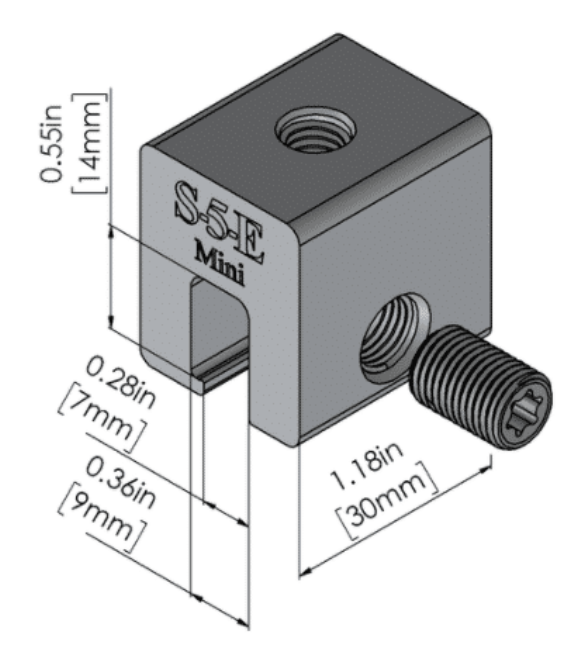

    • Dimensions:
  3. #Downloads#
