S-5-B Mini Clamp ( NO BOLT )

S-5-B Mini Clamp ( NO BOLT )

S-5!
(Code: S5-BMINI-NB)
OUT OF STOCK
Smaller than the standard S-5-B. For lighter duty attachments.
£ 16.28
122
Add to cart
  1. This brass clamp maintains the elegance of your copper roof with no harm to the roof material.

    Architects and roof designers choose copper roofing for its timeless elegance and durability. The S-5-B allows you to maintain that theme when mounting snow guards or utilities on the roof. The visual appeal of copper roofing also makes it a superior roofing type. The B ("B” is for Brass) is designed for double-folded, copper standing seam panelling.Choose the B to mount a variety of utilities, such as rooftop lighting, solar arrays, lightning protection and other appurtenances to your copper roof.

    The S-5-B Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required. The Mini clamp is a bit shorter than the standard S-5-B clamp with one setscrew rather than two.

    Rigorous load testing is performed on both standard and Mini clamps. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.

    S-5-B Mini Specifications
    • Designed for double-folded 16 and 20-oz copper standing seam roofs.
    • Metallurgical compatibility with copper.
    • Preserves aesthetics of copper roof.
    • Light and medium-duty applications, such as utility mounting.
    • Smaller than the standard S-5-B.
    • One T-30 Torx setscrew.
    • M8 Bolt sold separately.

    Is the S-5-B the Right Choice for Your Roof Profile?



    How to Install the S-5-B Mini Clamp on Your Roof Profile
    Installation is as simple as placing the clamp on the seam and tightening the round point Torx Drive (T30) setscrew to the specified tension. Then, affix ancillary items using the M8 bolt sold separately.

    *See more detailed installation instructions in the downloads tab.
    • Weight: 0.122kg

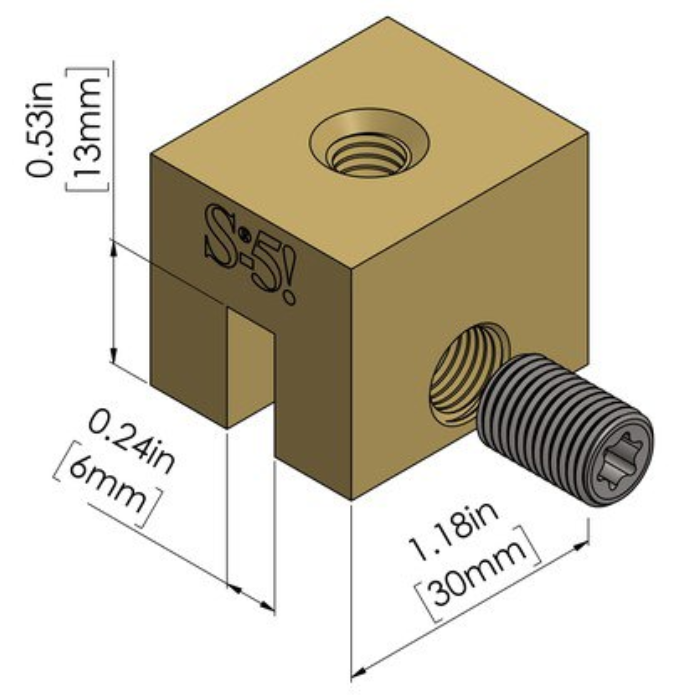

    • Dimensions:
  3. #Downloads#
