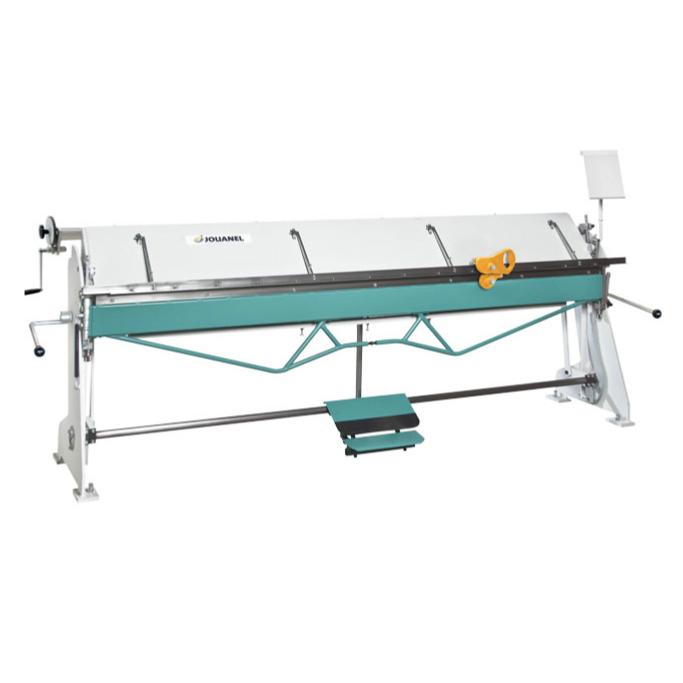

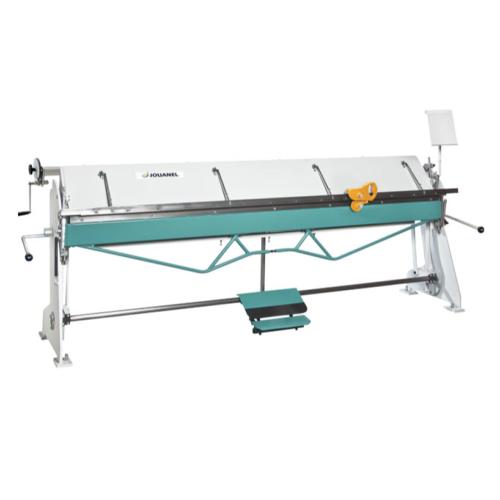

Jouanel PVX2040 Workshop Folding Machine
Jouanel PVX2040 Workshop Folding MachineJouanel PVX2040 Workshop Folding MachineJouanel PVX2040 Workshop Folding MachineJouanel PVX2040 Workshop Folding MachineJouanel PVX2040 Workshop Folding MachineJouanel PVX2040 Workshop Folding Machine

Jouanel PVX2040 Workshop Folding Machine

Jouanel
(Code: JOU-PVX2040)
PVX Manual folding machine for workshop - equipped with a 15 mm apron tool, useful folding length 2m, 1.5mm zinc capacity - 1.2mm S235JR steel capacity, with ergonomic folding beam and 15mm narrow tool, clamping-loosening foot pedal, graduated angle gauge and angle scale, left-hand and right-hand side levers
Jouanel PVX Model :
101000
  1. Manual folding machine for workshop, reference PVX2040, useful folding length 2m, 1.5mm zinc capacity - 1.2mm S235JR steel capacity, with ergonomic folding beam and 15mm narrow tool, clamping-loosening foot pedal, graduated angle gauge and angle scale, left-hand and right-hand side levers.

    • Can be used on building sites or workshops
    • Interchangeable clamping beam tool 27°
    • Folding beam rotation on needle bearing

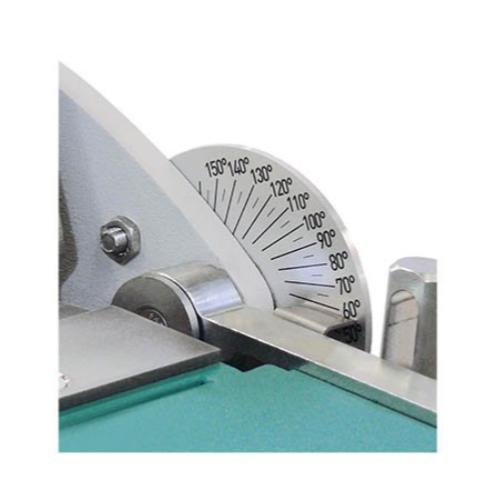

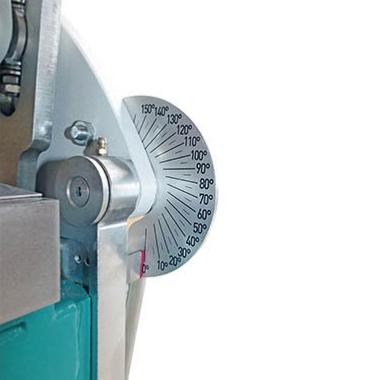

    • Graduated angle scale

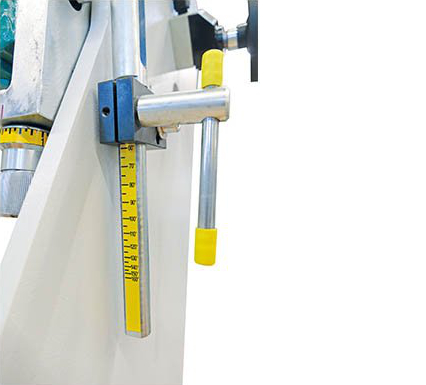

    • Graduated angle gauge
    • Easy vertical adjustment of the folding beam thanks to the graduated wheels enables the radius setting and makes the reverse bend easier
    • 2 lateral operating levers
    • Clamping-loosening foot pedal
    • Console and tool support
    • Very high rigidity for a quality folding
    • Suitable for small-lot shaping work
    • Cuts, folds and beads
    • Ergonomic folding beam for a better positioning of the operator
    • Interchangeable folding beam tool to increase the folding capacity
    • Folding made by cylinder
    • 15mm narrow tool for closer counter-seams (available in 12mm)
    • Machined clamp tool making the production of seams easier
    • Equipped with a large clamping-loosening foot pedal
    • Useful folding length: 2040mm
    • Capacity zinc / steel S235JR: 1.5mm, 1.2mm
    • Maximum folding angle 153°
    • Clamp opening: 110mm
    • Height of the table (mm) 910
    • Dimensions: 2738mm x 795mm x 1215mm
    • Gross Weight: 620kg
    • Minimum width of fold = 15 times the thickness
