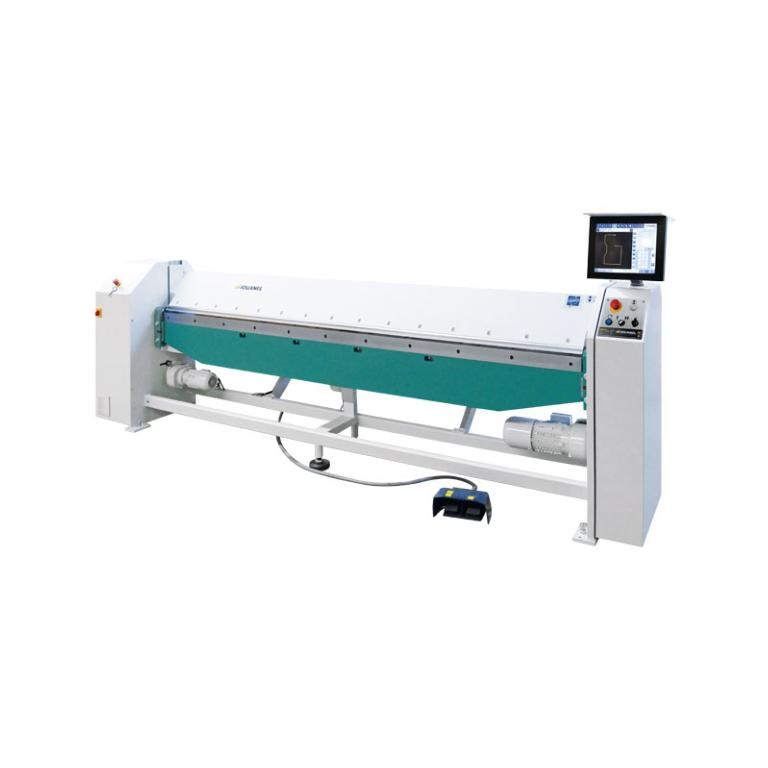

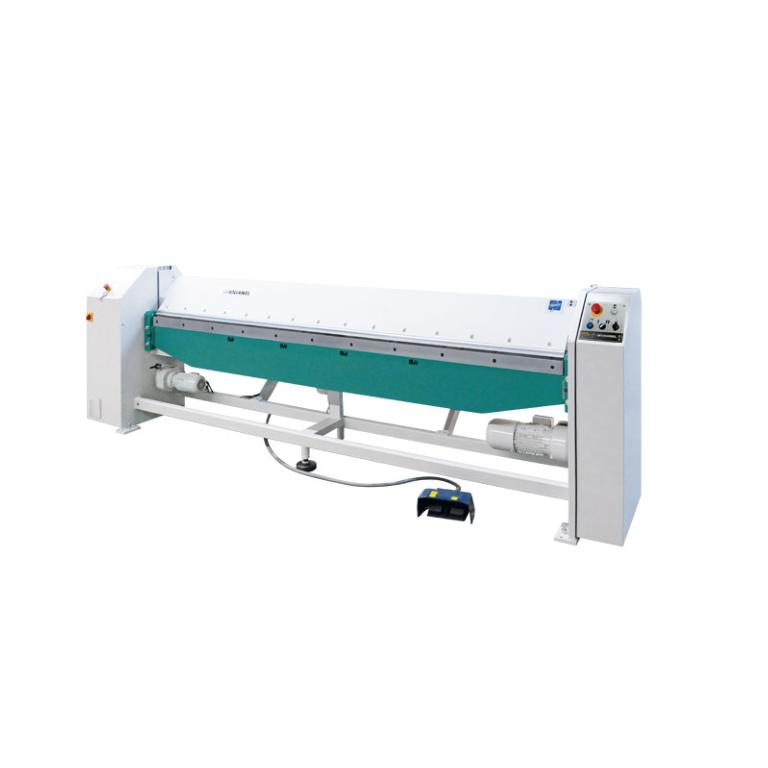

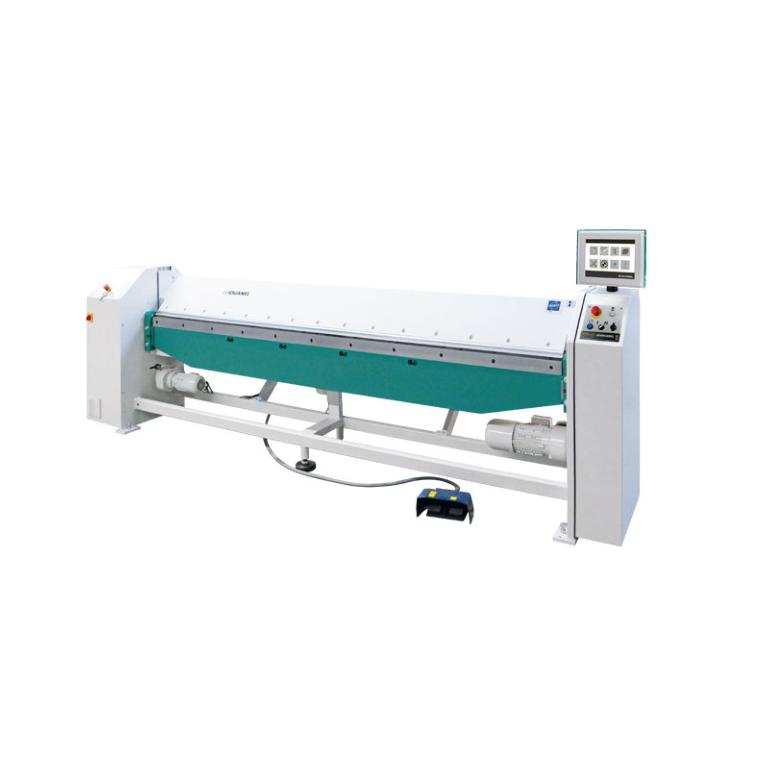

Jouanel PTL2100-18 Electric folding machine
Jouanel PTL2100-18 Electric folding machineJouanel PTL2100-18 Electric folding machineJouanel PTL2100-18 Electric folding machine

Jouanel PTL2100-18 Electric folding machine

Jouanel
(Code: JOU-PTL2100-18)
Universal electric folding machine for workshop, reference PTL2100-18, useful folding length 2m, 2.5mm 1050-H44 aluminum capacity - 1.8mm 400N/mm˛ steel capacity (capacities with 25mm folding beam tool), with automatic folding cycle, control by pedal, electromechanical angle gauge and 2 interchangeable 15mm and 25mm folding beam tools supplied.
Jouanel PTL Model :
301000
  1. Universal electric folding machine for workshop, reference PTL2100-18, useful folding length 2m, 2.5mm 1050-H44 aluminum capacity - 1.8mm 400N/mm˛ steel capacity (capacities with 25mm folding beam tool), with automatic folding cycle, control by pedal, electromechanical angle gauge and 2 interchangeable 15mm and 25mm folding beam tools supplied.

    • Supply of 2 interchangeable 15 and 25-mm folding beam tools
    • Interchangeable clamping beam tool at 20° making easy the production of U profiles
    • Electromecanic angle gauge from 0 to 145°
    • Folding beam crowning device
    • Adjustment of the folding radius
    • Clamp locking control by foot pedal allowing to keep hands free
    • Control of the folding beam, upwards and downwards by push-buttons
    • Folding automatic cycle CAP
    • Emergency stop device with cable
    • A powerful and multi-purpose electric machine with a competitive price
    • Suitable for mass folding works
    • Rapidity of the clamp and folding beam motion
    • With or without numerical control depending on the budgets
    • Automatic Cycle of Folding (CAP) enabling to perform successively the folding operations with a 25% gain in productivity
    • Useful folding length 2100mm
    • Capacity steel 400N/mm˛ with folding beam 25mm 1.8mm
    • Capacity steel 400N/mm˛ with folding beam 15mm 1.2mm
    • Capacity 1050-H44 aluminium with folding beam 25mm 2.5mm
    • Capacity 1050-H44 aluminium with folding beam 15mm 1.75mm
    • Capacity galvanized steel with folding beam 25mm 1.5mm
    • Capacity galvanized steel with folding beam 15mm 1.0mm
    • Capacity stainless steel 304L with folding beam 25mm 1.2mm
    • Capacity stainless steel 304L with folding beam 15mm 0.8mm
    • Table height 835mm
    • Clamping beam tool angle 20°
    • Clamp opening 130mm
    • Folding speed 60°/s
    • Clamping speed without safety light curtains 10mm/s
    • Clamping speed with safety light curtains 40mm/s
    • Power supply (V)*
    • 400 V three-ph + neutral + earth
    • Total power 1.5kW
    • Dimensions without back gauge 2970mm x 620mm x 1190mm
    • Dimensions with electric back gauge and CNC options 2970mm x 1673mm x 1550mm
    • Gross weight without electric back gauge 1800kg
    • * Electrical voltage to be specified upon order
    • 90° bending capacities / Minimum fold width: 15 times the thickness
    • Clamp flattening = 1/3 of max. thickness capacity
