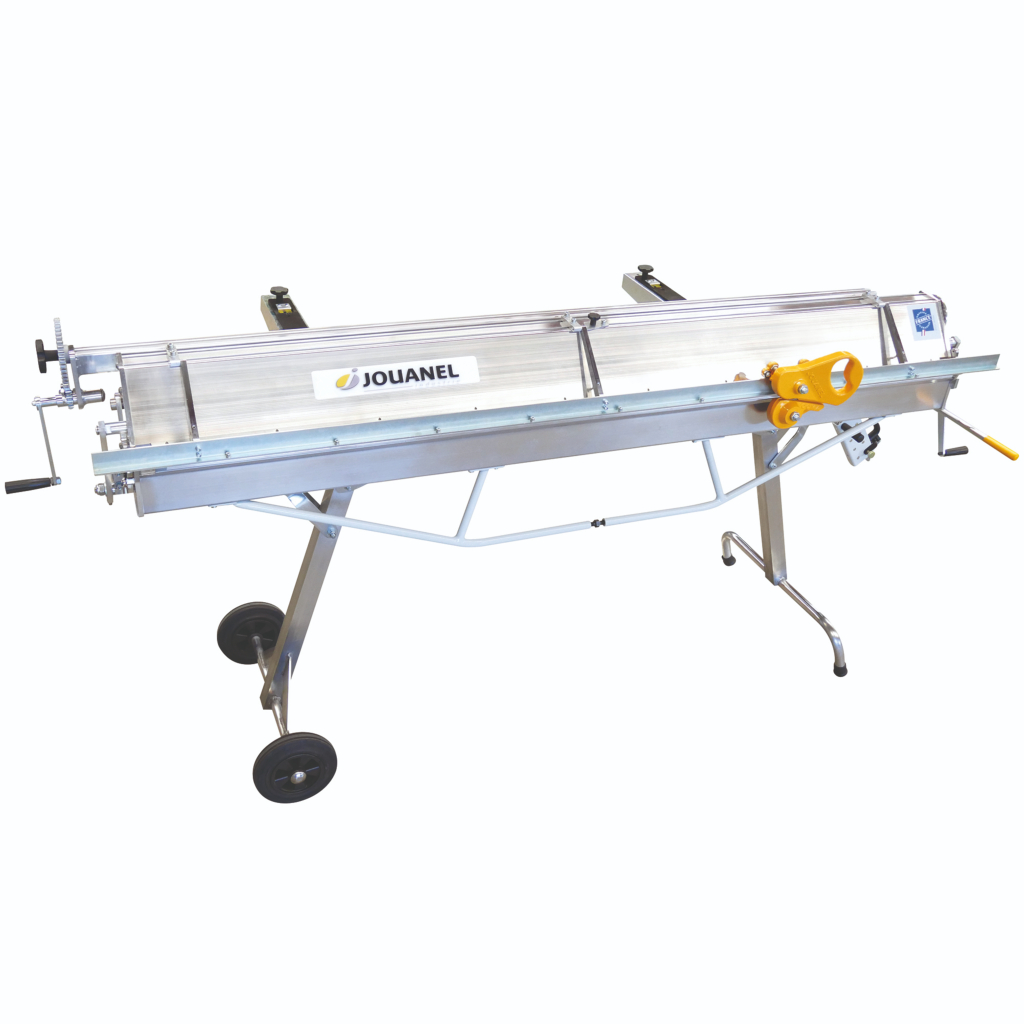

Jouanel PCA Aluminium Folding Machine
Jouanel PCA Aluminium Folding MachineJouanel PCA Aluminium Folding MachineJouanel PCA Aluminium Folding MachineJouanel PCA Aluminium Folding Machine

Jouanel PCA Aluminium Folding Machine

Jouanel
(Code: JOU-PCA2040)
Light manual folding machine with roller shear, back gauge and guiding rail.
£ 3,895.00
102000
Add to cart
  1. Light manual folding machine for the building site, aluminum made, useful folding length 2m, zinc capacity: 0.8mm, steel capacity: 0.63mm, crank handle to lower or raise the machine, 15mm narrow folding beam

    Features
    • Mainly made of aluminum: only 80kg for a 2-meter folding length (without roller shear, back gauge and guide rail).
    • Can be folded and moved smoothly.
    • Working height adjustable for the operator.
    • Easy to move around on building sites and in vehicles.

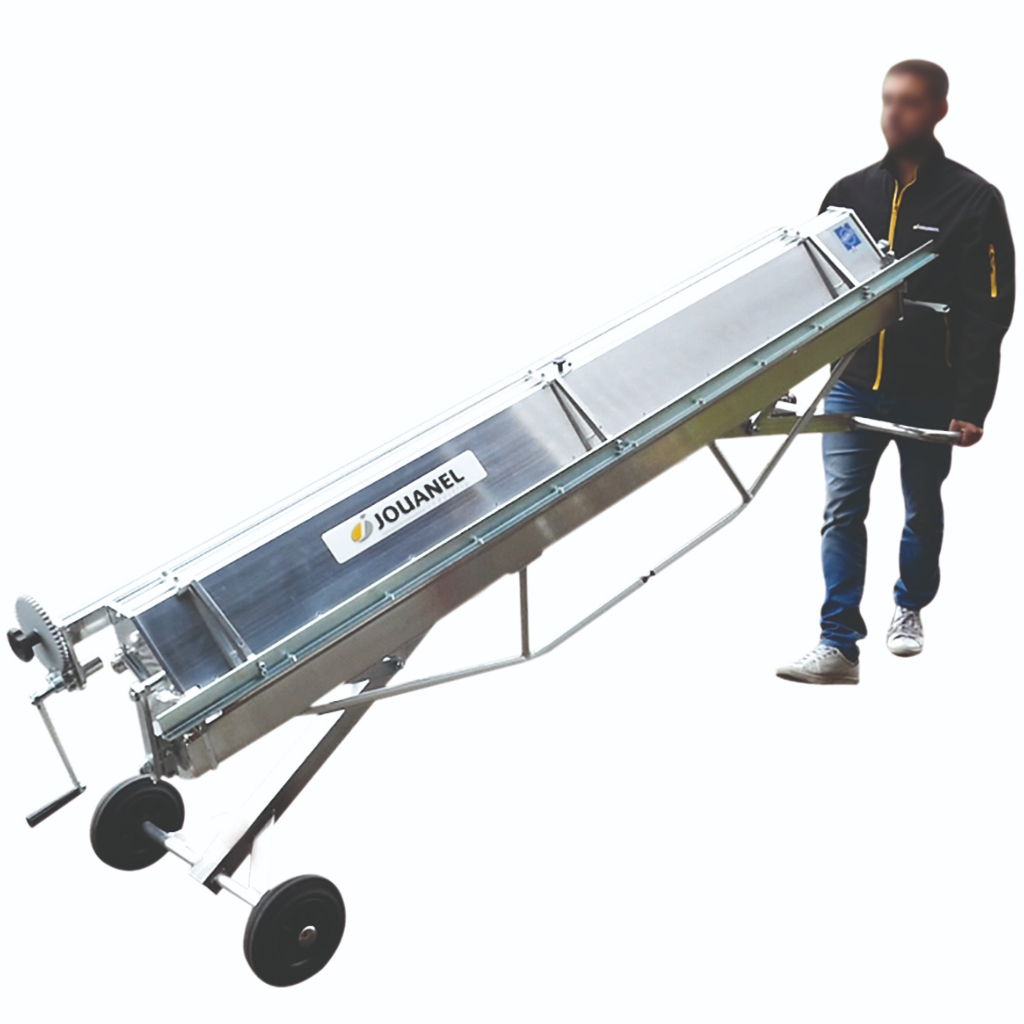

    • Can be moved and operated by a single person.
    • Three-in-one machine with its equipment: cuts, folds and beads.

    Included

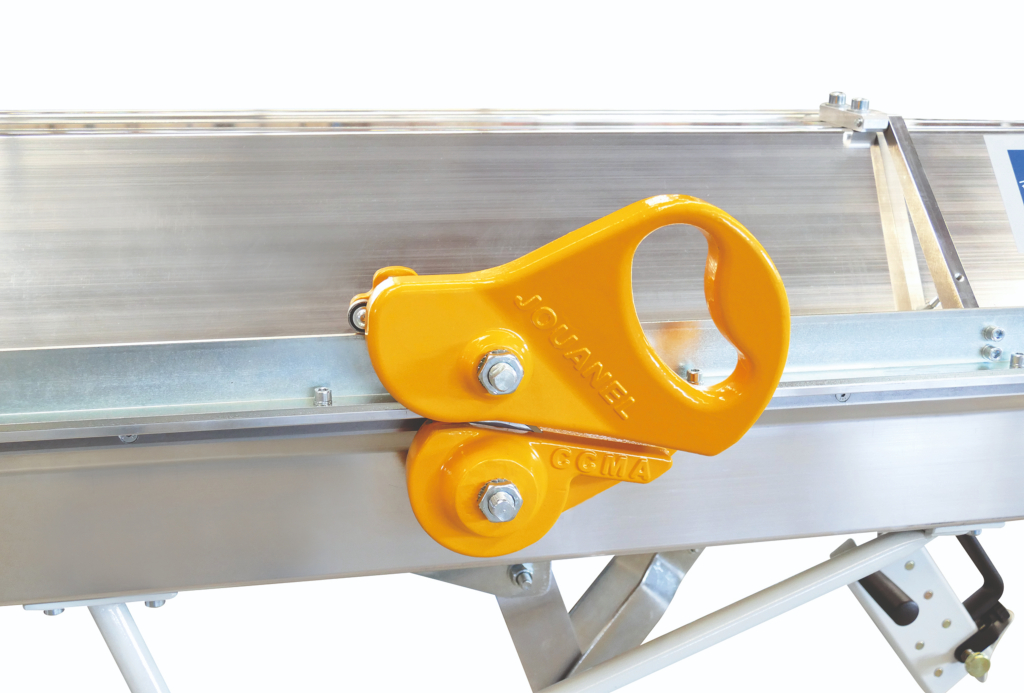

    • Roller shear 0.8mm zinc capacity, 0.7mm steel capacity, to cut the material.
    • Guide rail: Hinged device at the front of the folding machine intended to use the roller shear for the scribe cuts of material before folding.
    • Set of 2 back gauge arms with slide type X, adjustable from 55 to 510mm.
    • Folding beam with interchangeable 15mm narrow tool.
    • Interchangeable clamping beam tool at 158° in treated steel.
    • Folding beam with interchangeable 15mm narrow tool.
    • Clamp operating lever on the right side of the machine.
    • Clamp locking by eccentric.
    • Graduated angle sector.
    • Crowning adjustment of the folding beam.

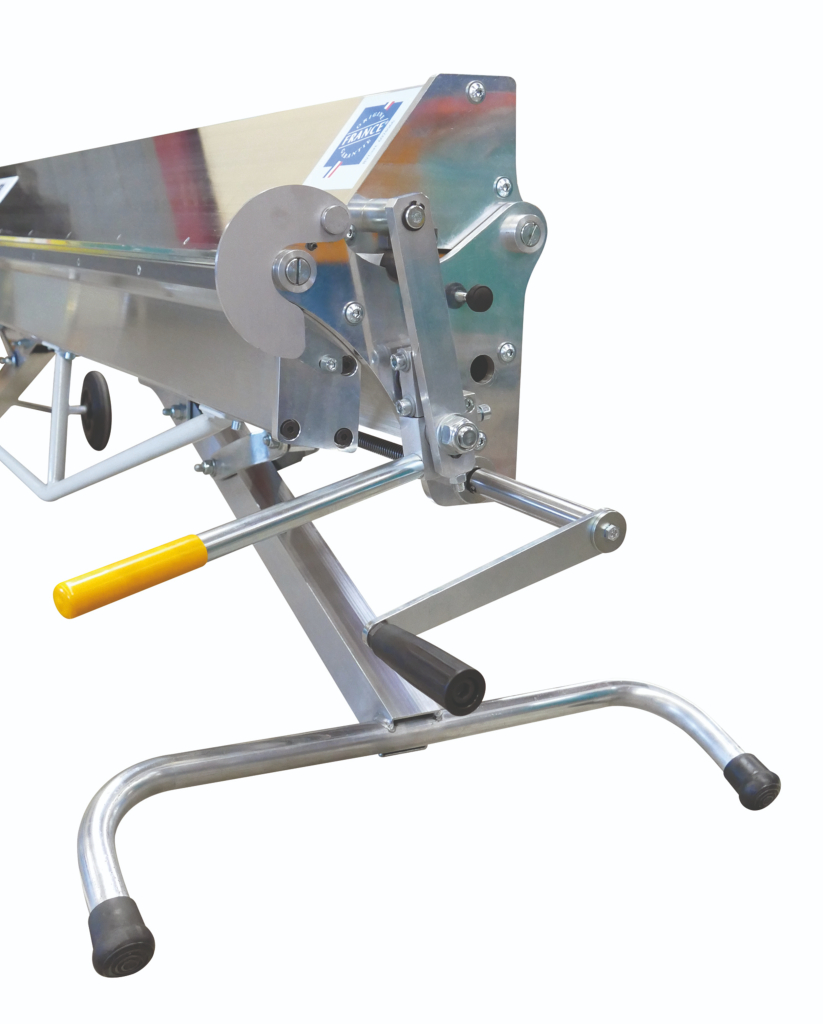

    • Crank handle to lower or raise the machine.
    • Two 200mm Ø wheels for an easy handling.
    • Useful folding length: 2040mm
    • Zinc and 1050-H44 aluminium capacity: 0.8mm
    • Steel capacity S235JR: 0.63mm
    • Clamping beam tool angle: 158°
    • Clamping beam opening: 60mm
    • Dimensions: 2330 x 650 x 1070mm
    • Dimensions when folded:  330 x 650 x 640mm
    • Table height (folding machine completely unfolded): 900mm
    • Net weight (without accessories): 80kg
    • Minimum fold width = 15 times the thickness
