Eckold Handformer
Eckold HandformerEckold HandformerEckold HandformerEckold Handformer

Eckold Handformer

Eckold
(Code: Eckold-HF100)
The perfect hand tool for the stretching, shrinking, notching, punching & edging of sheet metal.

Contact us for options, price and availability.
5500

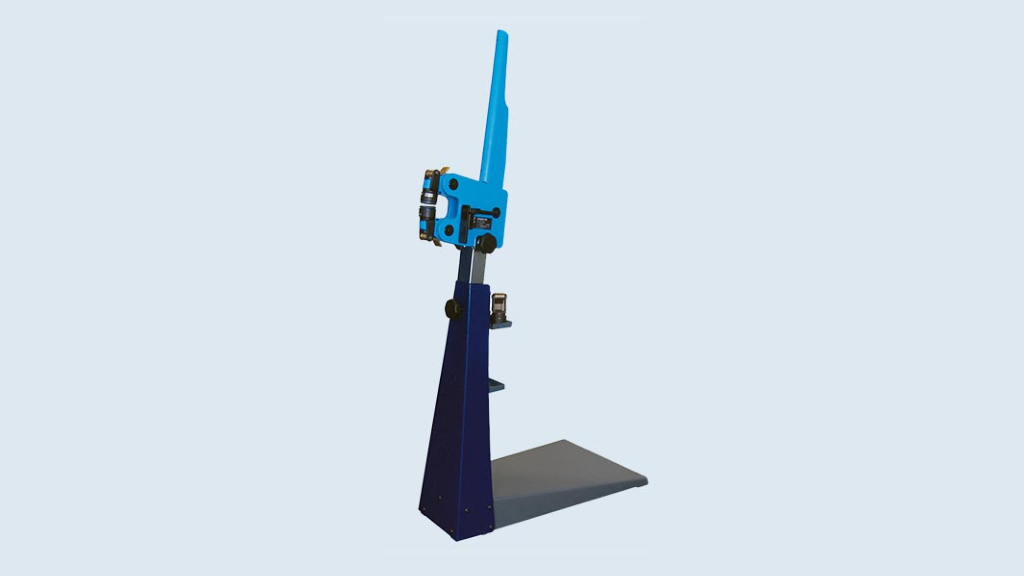

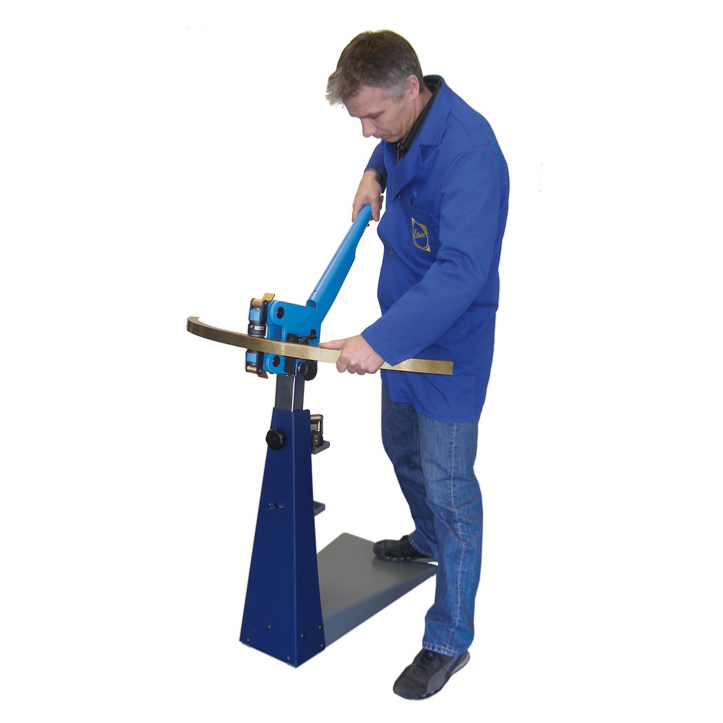

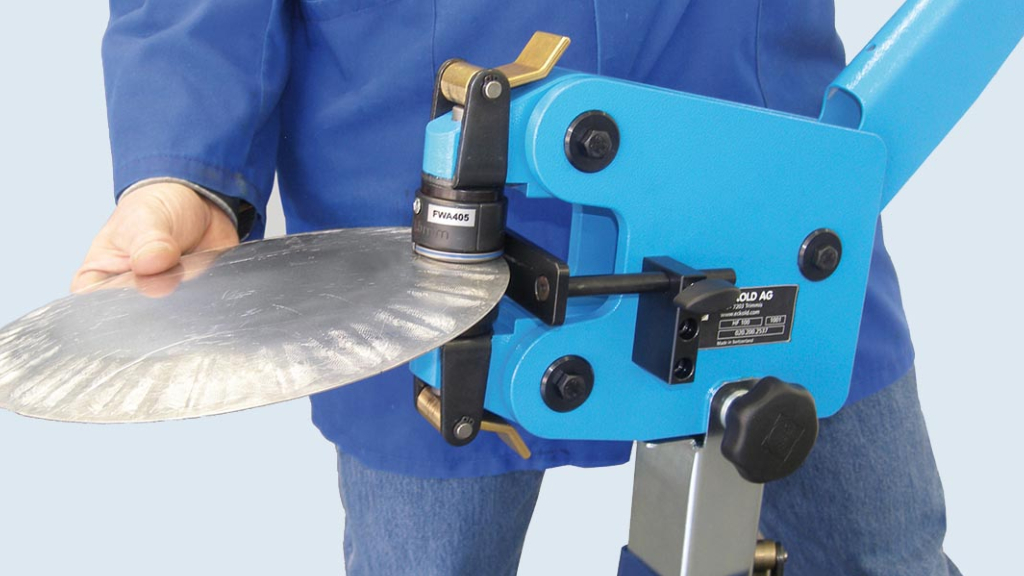

  1. The Eckold Handformer HF 100 replaces laborious hammer work when forming metal. It is suitable for shrinking and stretching mild steel sheet metal sections and profiles up to a thickness of 1.5mm or up to 2.0mm aluminium.

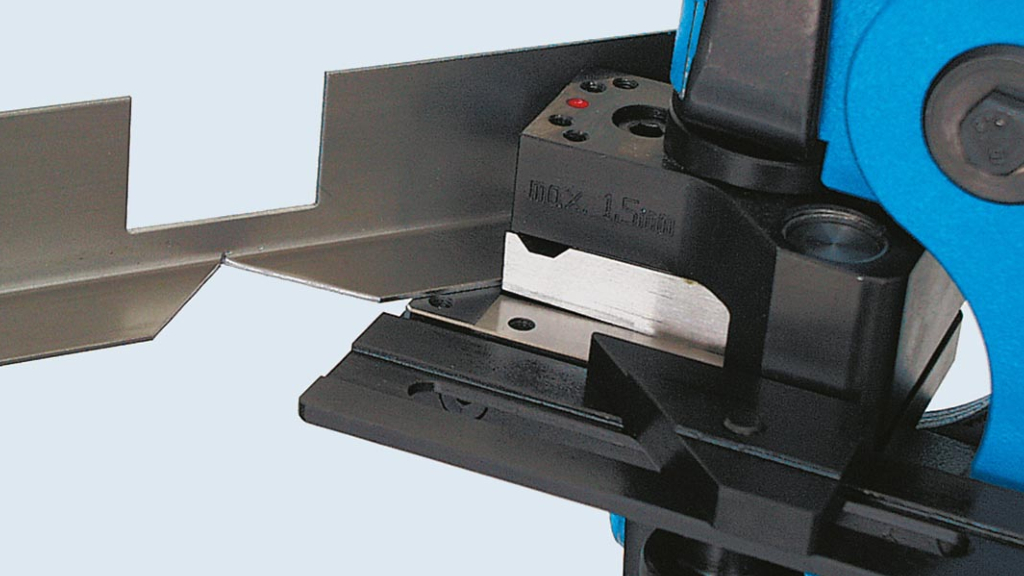

    The HF 100 Eckold Handformer is a stationary machine with manual drive, ideal for workshop use with a throat depth of up to 100mm. Compared to manual labour the Handformer is clean, quick and quiet. The single stroke of the Handformer machine makes it possible to also operate tools for notching, punching and edging.

    Advantages
    • Adjustable working height.
    • Quick tool change.
    • Integrated shelves.
    • Depth limit stop for precise guiding of workpieces.
    • Air operated drive unit PA 100 available.

    Contact us for options, price and availability.
    • Throat depth, horizontal: 100mm
    • Throat depth, vertical: 60mm
    • Total length: 700mm
    • Width: 390mm
    • Height: max. 1175mm
    • Drive: Manual
    • Stroke frequency: Single stroke
    • Steel (400N/mm˛) capacity: 1.5mm
    • Aluminium (250N/mm˛) capacity: 2.0mm
    • Stainless steel (600N/mm˛) capacity: 1.0mm
    • Weight: 30kg
