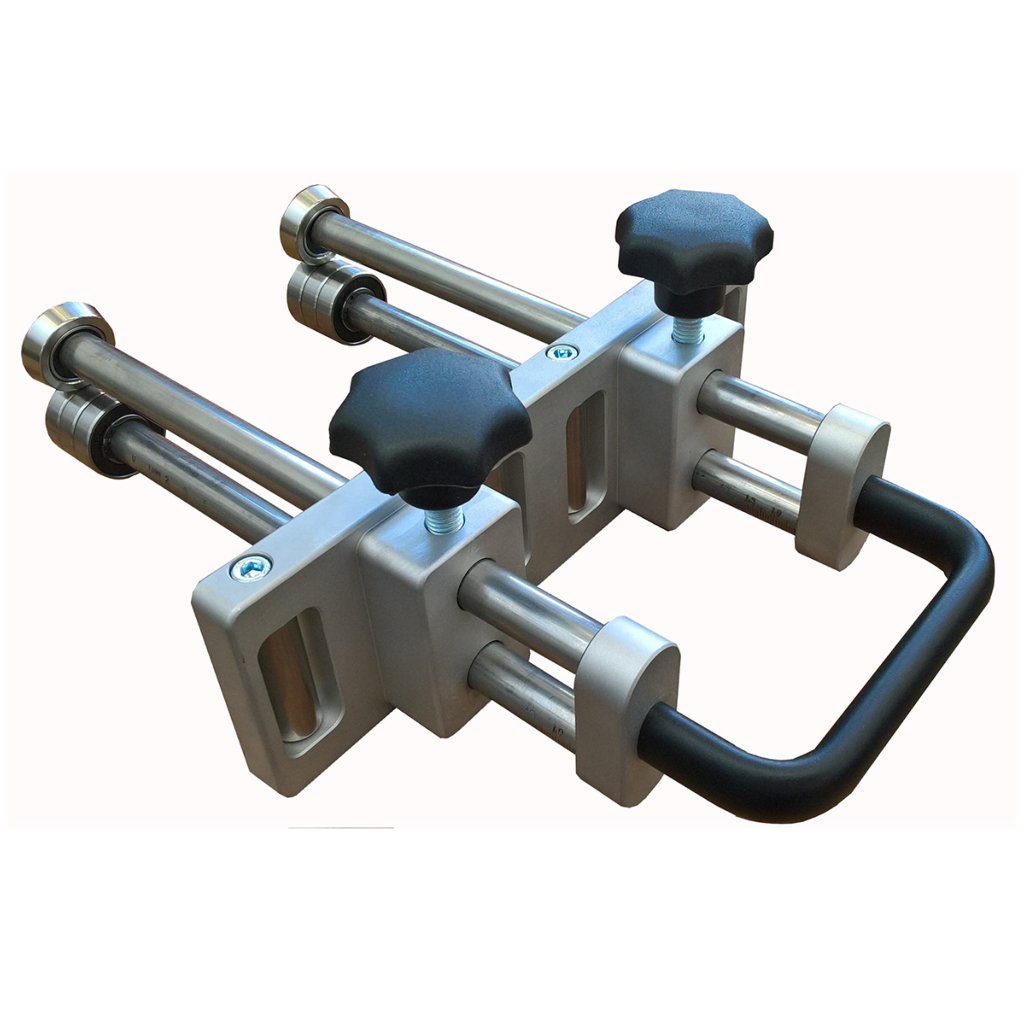

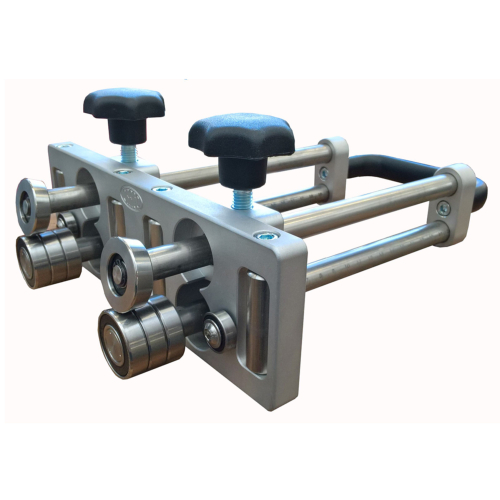

Duo Mono-Bender 4

Draco
(Code: Draco-91564100)
Duo = double. Mono = one piece.
Length :
£ 614.00
2900
  1. Universal mobile bending tool to bend and form all kinds of materials straight, concave or convex.

    • Duo = double. Mono = one piece.
    • Light weight with 4 guiding rollers.
    • Bends from 0° - 100°.
    • Bending height continuously adjustable from 5mm to 200mm.
    • Inner and outer radii are possible, max. bending height depends on radius!
    • Solves many technical bending problems, as up-stands and counter forms without any scratch marks.

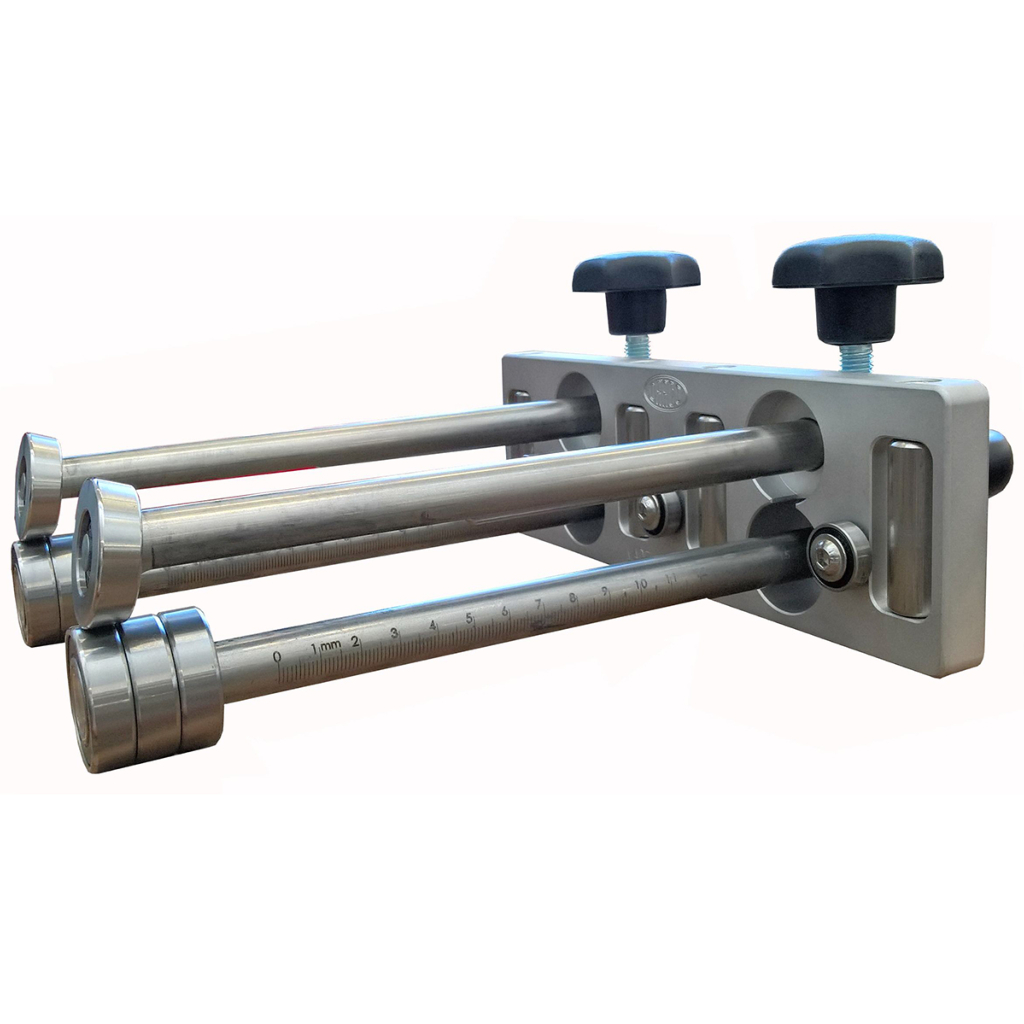

    • Graduation in inch and millimetre.
    • Steel capacity (400N/mm˛): 0.7mm
    • Stainless steel capacity (600N/mm˛): 0.5mm
    • Zinc, copper, aluminium capacity: 1mm
    • Bends from - to: 5 - 200mm
    • Weight: 2.9kg
