Dimos Profibac

Dimos Profibac

Dimos
(Code: Dimos-083801)
Available at Supplier

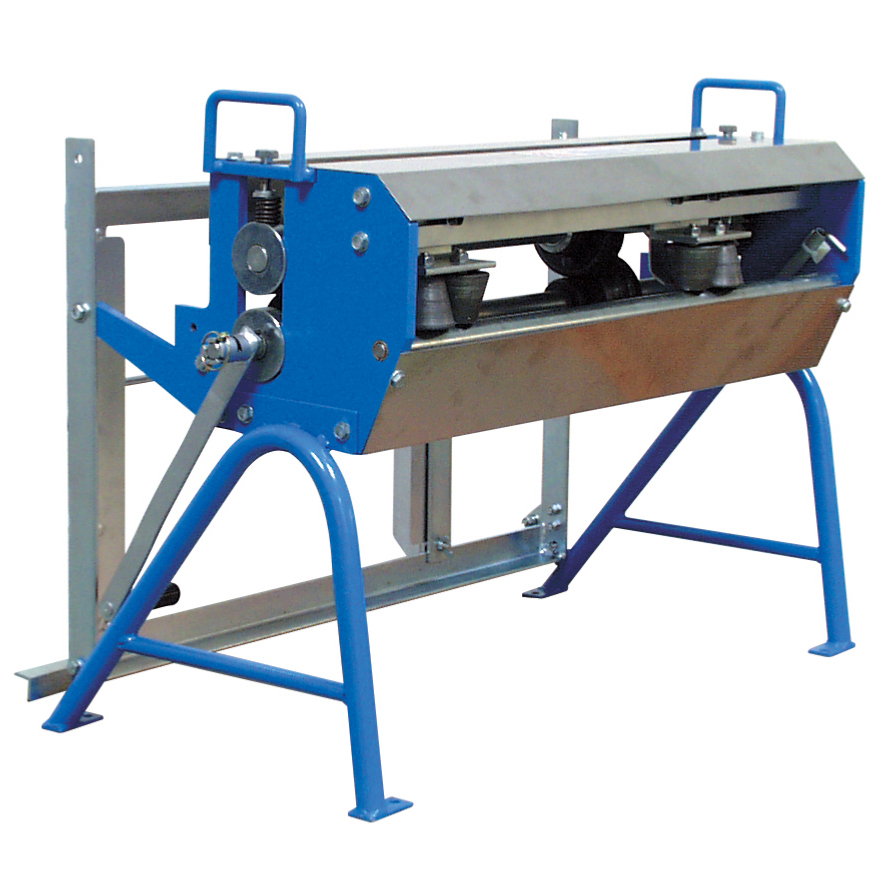

Manual profiling machine for batten roll system.



70000
  1. Manual profiling machine for batten roll system. To produce your profiles with quality and accuracy, the Profibac is the ideal machine. Effective, light, efficient and compact, it is your on-site friend.

    The hand operated roll former forms a single upstand for batten roll (80°) or standing seam (90°). Its design enables a quick adjustment to the sheet width and the height of the upstand. The machine is already equipped with stops adjusted to the two most frequent sheet widths (500mm and 650mm).

    Features
    • Rollers for vertical (standard) or angle upstand.
    • Compact and light-weight.
    • Simplified adjustment.
    • Less maintenance.
    • Easy to handle thanks to its two handles.
    • Folding feed guide to make it easier to carry.
    • Lap height adjustment from 35mm to 45mm.
    • As an option, the Profibac can also produce N°2 profile standing seams.
    • Copper (1/4 hardness) capacity: 0.6mm
    • Zinc capacity: 0.8mm
    • Aluminium (A5 1/2 hardness H24): 0.7mm
    • Steel (400N/mm˛) capacity: 0.6mm
    • Stainless steel (470N/mm˛) capacity: 0.4mm
    • Working width: 500mm to 650mm
    • Upstand height: 35mm to 45mm
    • Length: 0.782m
    • Width: 0.853m
    • Height: 0.64m
    • Weight: 70kg
