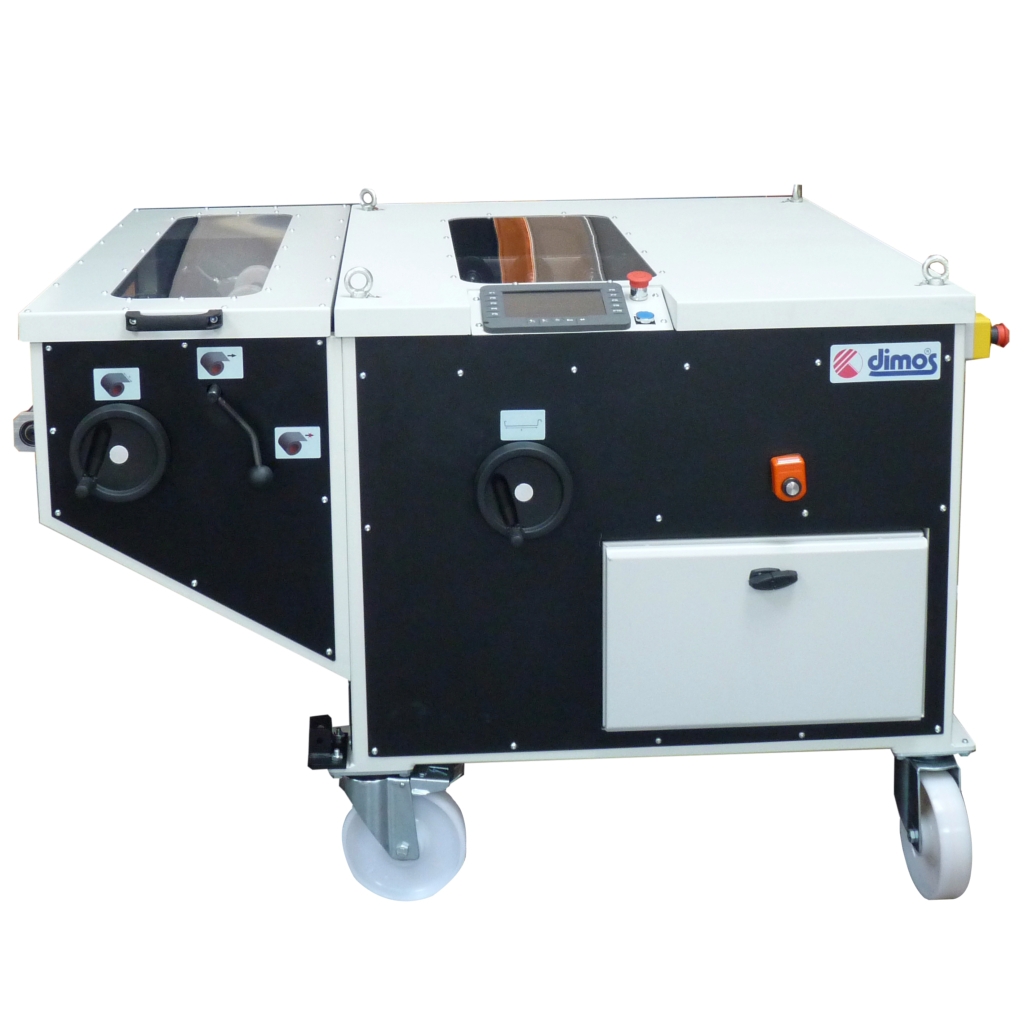

Dimos Dipro P7200 Standing Seam Profiler

Dimos Dipro P7200 Standing Seam Profiler

Dimos
(Code: Dimos-084730)
Available at Supplier

Top of the range profiling machine for standing seam system, suitable for all metals including coated metals.


£ 23,161.00
200000
Add to cart
  1. Top of the range profiling machine for standing seam system, suitable for all metals including coated metals (not currently available with lifting eyes).

    The roll forming machine is a machine that allows you to profile standing seam roof and cladding panels from metal sheets or coil. Optimal profiling quality, fully automatic, high productivity and specially designed for ease of use.

    Features
    • Complete with touch screen control, length measuring, electric cross cutting, slitting.
    • Sigma 3.0 profiling train: adaptable to different material thicknesses.
    • No tools required.
    • All configurations of male and female profiles.
    • 7'' touch screen controller: configuration of the site in a few seconds.
    • Simplified mode (quick start) and expert mode (program sequence).
    • Partial cut calculation.
    • High cutting accuracy: cross and longitudinal (slitting).
    • Panel width accuracy of 0.5mm/m.
    • High profiling speed.
    • Copper capacity: 0.7mm
    • Zinc capacity: 0.8mm
    • Steel (400N/mm˛) capacity: 0.7 mm
    • Stainless steel (470N/mm˛) capacity: 0.5mm
    • Aluminium capacity: 0.8mm
    • Length: 1550mm
    • Width: 1280mm
    • Height: 1000mm
    • Profiling speed: 15m/min (220V) 12m/min (110V)
    • Voltage: 220V
    • Weight: 500kg
