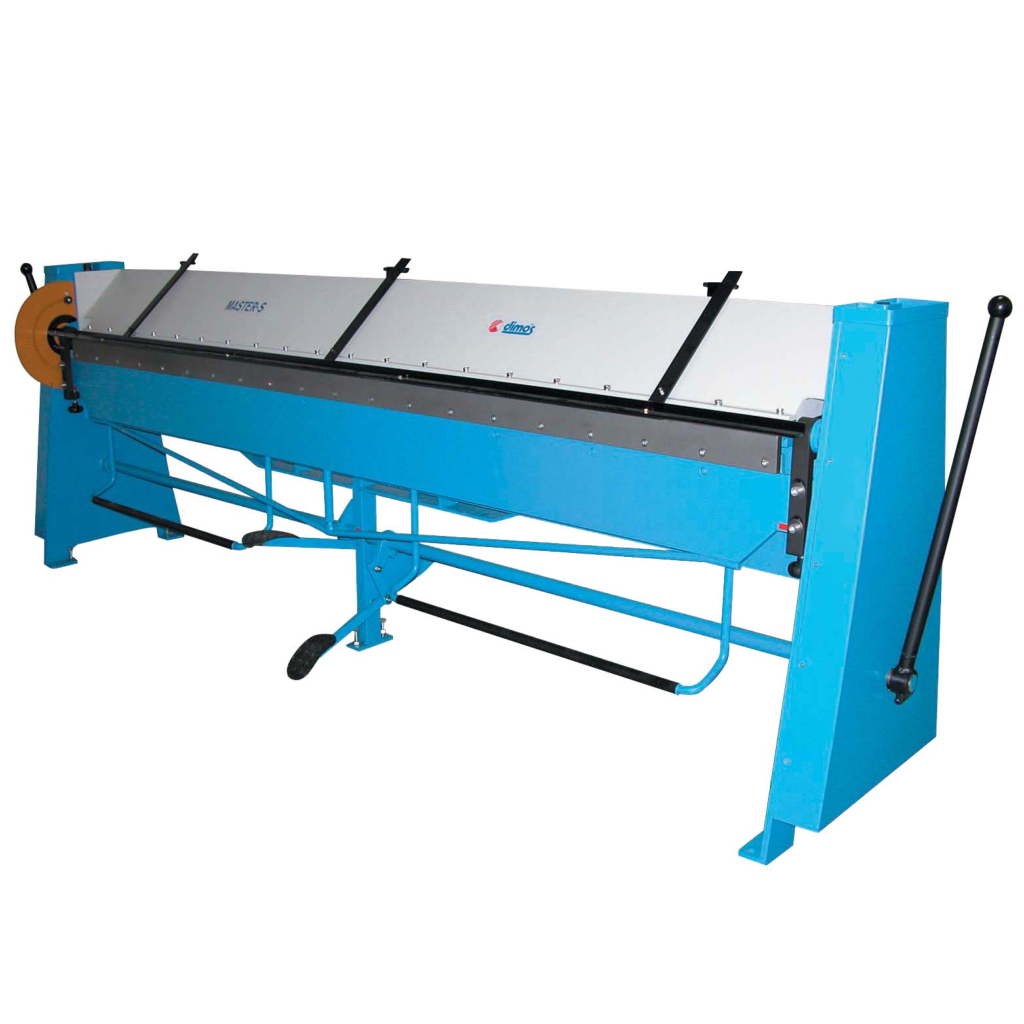

Dimos Master-S

Dimos Master-S

Dimos
(Code: Dimos-084513)
Available at Supplier
High capacity workshop bending machine.
Length :
500000
  1. The Master-S folder is a high capacity workshop bending machine combining robustness, productivity and versatility. It is perfect for roofers and workshops that shape metal a lot with the production of complex folds and are looking for high productivity.

    Advantages
    • The sidewall cylinders allow you to maintain the open position effortlessly.
    • The two pedals allow the operator to work with hands free.
    • Replaceable lip and apron.
    • The numerous adjustable options allow a high precision.

    Features
    • Steel design; Workshop folder.
    • Working length: 2m
    • Fold depth: unlimited; Ideal for all folds.
    • Short apron 20mm (15mm apron option) for close folds and 140mm flank opening.
    • 30mm lateral and 55mm vertical clearances.
    • Many adjustment possibilities (e.g. apron, fold straightness, clamping pressure).
    • Scalable according to requirements.
    • Double pedals for opening and closing the sidelayer.
    • Corner stop: producing identical folds in series.
    • Rear stop (optional): measuring the cutting or folding depth for a more productive serial work.
    • Assistance cylinders.

    Please contact us for price, options and availability.
    • Copper (1/4 hardness) capacity: 2mm
    • Zinc capacity: 3.2mm
    • Aluminium (A5 1/2 hardness H24): 2.4mm
    • Steel (400N/mm˛) capacity: 2mm
    • Stainless steel (470N/mm˛) capacity: 1.6mm
    • Working length: 2000mm
    • Length: 2520mm
    • Width: 650mm
    • Height: 1180mmm
    • Weight: 900kg
